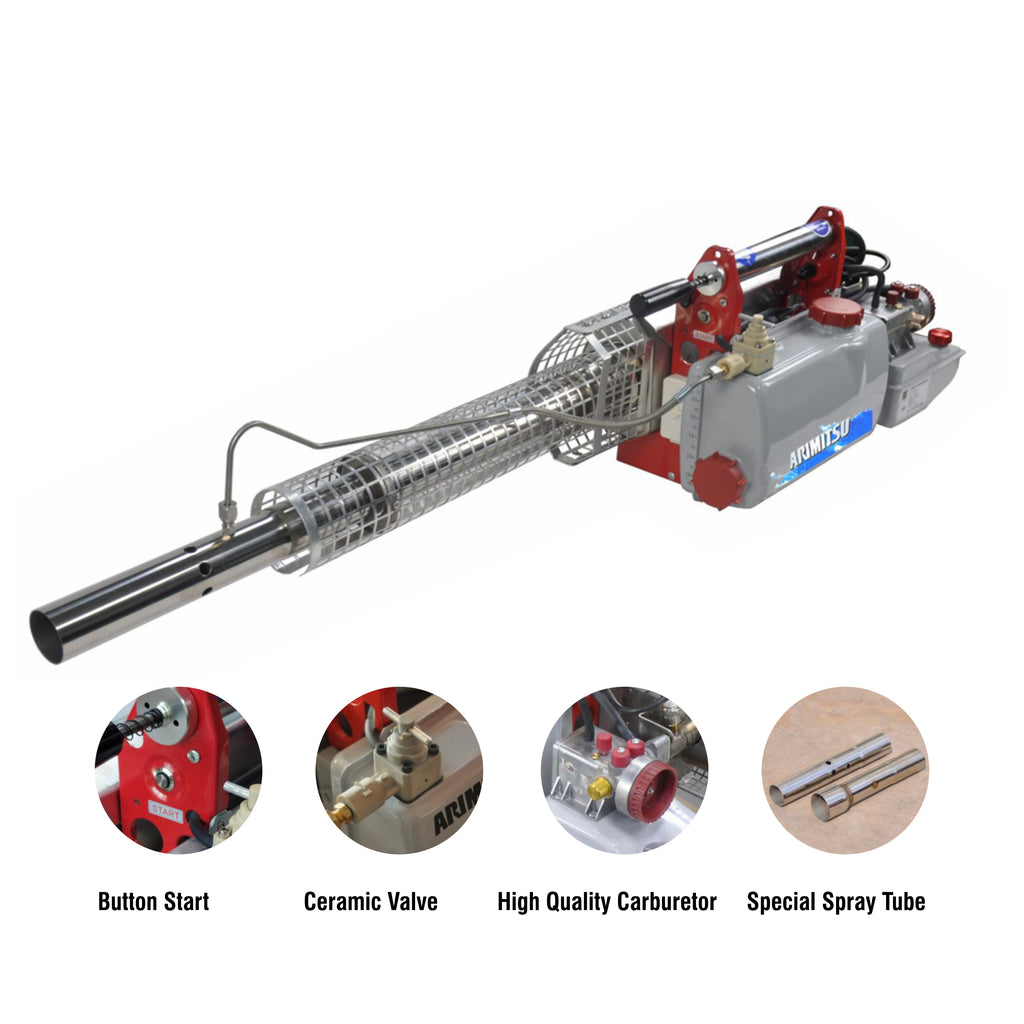

PE Solution Tank, Auto Ignition
Of efficient stronger, specifically for spraying water mist, powder medicine, far range, large spraying quantity, diffuse effect is good, the droplet uniform and meticulous!Especially suitable for agriculture, orchards, greenhouses and other large areas of prevention and control of pests and diseases; health and epidemic prevention, sterilization, special requirements of spraying water mist.
- Enhanced engine, high efficiency and fuel saving, strong power, large spraying quantity, longer range, the spraying effect is better.
- The Excellent water spray mist function, powder drug can also be achieved ideal atomizing effect.
- Support for Φ 3 mm nozzle, spray the same uniform and meticulous.
- Manual start，Auto ignition, easy start, excellent performance.
- Precision control oil supply system, a more stable performance.
- The first easily detachable structure of patent technology, more convenient maintenance repair.
- The 9 liter PE solution tank, 304 stainless steel fuel tank, durable.
- Use of lightweight metal heat protective net, good radiation effect, simple and generous.
- Optional large solution tank, realize long time large area disinfection, sterilization operation
- Droplet diameter: ≤ 30 micron:
Areas Scope of application：Large area crop, horticulture, greenhouse pest and disease control, food processing or farm disinfection, indoor and outdoor health and epidemic prevention, pest control and other special requirements of spraying water mist.
Packing size：1200*360*350 (mm)
Fuel consumption：1.8-2.0 litre /h
The spraying dosage：30-80 litre /h
Maximum power：≥40 hp
Ignition mode：automatic ignition
Droplet diameter: less than 30 micron.
Safety net: full protection
Spray smoke fog range：15-30m
Water spray mist range：8-12m
The fog particle diameter：The fog particle diameter less than 50 microns
Solution tank capacity：9.0 litre
Solution tank pressure：0.3-0.4bar
Fuel tank capacity：1.8 litre
Fuel tank pressure：0.12 – 0.15bar
Start power supply：3V two 1# dry batteries
The use of fuel：93# above pure gasoline
Application carrier：0 # diesel or white oil
Application of pharmacy：oily, water-based agent or wettable powder
Net weight:：8.2 Kg
Gross weight：12.7 Kg
