Hand Held Thermal Fogging Machine
High quality level, long life using.

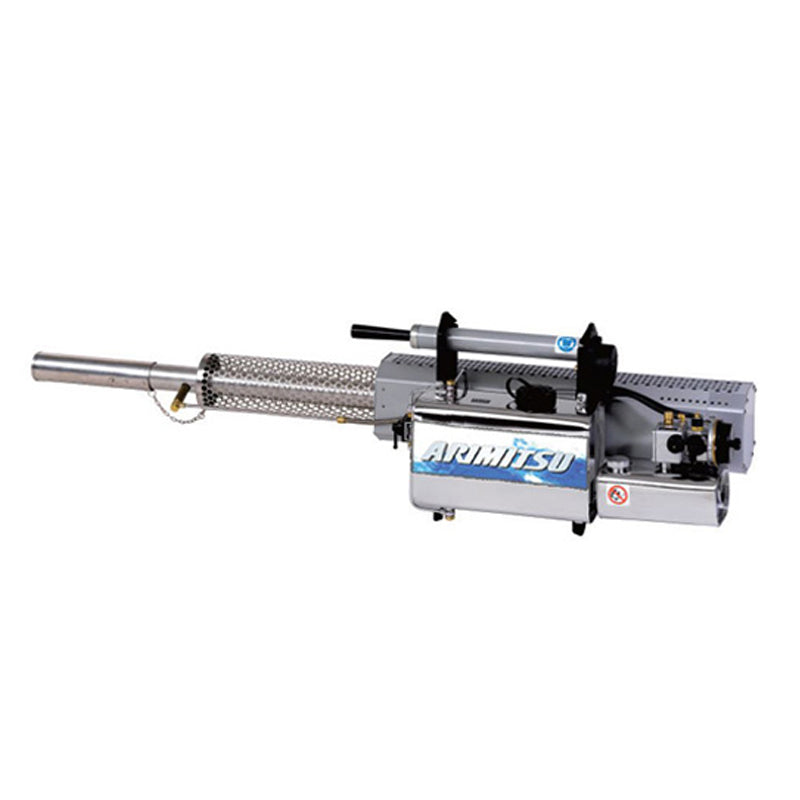

ARIMITSU TS-36S uses a high powered pulse jet engine to produce dense, heavy thermal fog.
3 layers protecting shield, 2 stage cooling system keep temperature of the fogging tube and combustion chamber low, when machine working, even can tough the protecting shield of machine, more safety to customer.
This thermal fogger can dispense both water and oil based chemicals, such as most pesticides, fungicides, disinfectants, miticides, poultry vaccines, and odor neutralizers.
The ARIMITSU TS-36S machine widely used by health departments around the world to control mosquito-borne diseases (West Nile Virus, Encephalitis, Malaria, Dengue Fever, Yellow Fever and Chagas disease).
|Weight, empty||9.1 kg|
|Dimensions(L x W x H)||1375x290x360mm|
|Weight, empty(shipping data)||14.1kg|
|Dimensions (L x W x H ),(shipping data)||1270x310x370mm|
|Chemical tank capacity||5 L|
|Fuel tank capacity||1.5 L|
|Fuel consumption||1.5 L/h|
|Performance of combustion chamber||13.8-18.2 Kw / 18.8-24.8 Hp|
|Battery electricity||4x 1.5 V|
|Pressure in chemical tank||0.25 bar|
|Pressure in fuel tank||0.06 bar|
